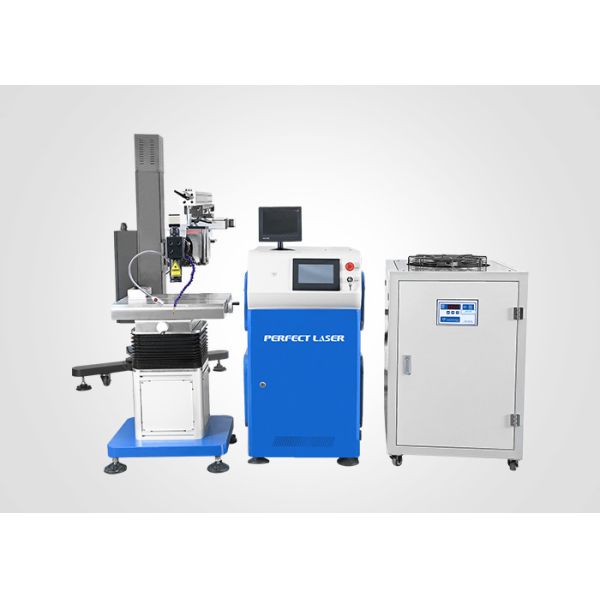

    Flexible Moving Direction Fiber Laser Mold Welding Machine with 16KW Maximum Input Power and Gold Single Cavity Design

    Fiber Laser Mold Welding Machine Mould Repaired with hang Arm Flexible Moving Direction Adjustable Laser Welder Beam

    (Model:PE-W600D)

    Description

    Perfect Laser specializes in the comprehensive lifecycle of welding solutions, encompassing research and development, manufacturing, sales, technical training, and post-purchase support. Our latest innovation, the portable welding machine for Mold and Die Repair, redefines precision engineering with its cantilevered laser cavity design. This breakthrough sets it apart from conventional welders by enabling seamless integration with high-strength, high-hardness materials—a critical advantage for industries demanding robust, durable repairs.

    To guarantee flawless continuity and uniformity in welding seams, even under rigorous processing demands, we’ve integrated a precision-engineered two-dimensional mold table. This feature allows for intricate, multi-axis adjustments, empowering operators to tackle complex geometries and demanding fabrication tasks with exceptional accuracy. By combining advanced laser technology with adaptive mechanics, our welder delivers unmatched reliability and efficiency, making it an indispensable tool for modern manufacturing and tool repair applications.


    Product Features

    1. The introduction of German technology, the user-friendly design of whole machine, is moresuitable for all kinds of large and medium mold repair.

    2. This types of welding machine use of British imports of ceramic condenser cavity, withhigh reflectivity, corrosion resistance, high temperature, the service life is up to 8-10 years, xenon lamp life of 800 million times.

    3. The welder use of the world's most advanced high-speed LCD light valve filter automatic protection system, eliminating the time in the work of the eye irritation.

    4.This types of aluminium welding machine with a cross-cursor stereoscopic microscope, the welding position to enlarge 10 times, (optional 15 times, 20 times). Cross the center of the cursor and the laser spot center overlap, easy to locate.

    5. The welder with high-power integrated chiller, to ensure that the whole machine for a long time high-power stable working conditions.

    6. Parameter adjustment using intelligent handle remote control, simple operation.

    7.12 directions can be adjusted controlled by computer, this types of welding machine is suitable for all kinds of mold repair welding.


    Application

    The pen laser engraving machine is widely used in exquisite patterns, trademarks and text pen marking industry, Applicable materials: gold and silver, stainless steel, iron, aluminum, copper, plastic products and other materials.


    Specifications
    Model
    PE-W600D
    Input voltageThree-phase four wire system,380V±5%
    Maximum input power16KW
    All mirrorreflectivity≥99.7%
    Power feedback typecurrent feedback
    Condenser cavityGold single cavity design, double lamp single rod
    Laser wavelength1.064μm
    Beam divergence angle≤8mrad/m
    Peak output power500W
    Laser head adjustment360 degree
    Pulse frequency1~150Hz
    pulse width0.1~20ms
    Current regulation50-500A
    Beam expander3 times
    Focal spot diameter0.2-2mm
    Cantilever stretch length900mm
    Cantilever up and down travel1000mm
    Cantilever XY electric stroke150*150mm
    Laser cavity length600mm
    Table sizeX*Y=500mm*350mm
    Table travel200mm
    Table XY hand travel250*120mm
    Display modeCoaxial microscope+CCDobservation
    Positioning modeRed
