    Channel Letter Bender With Notching Flanging Function For Stainless Steel , Galvanized Sheet

    Ask Lasest Price
    Brand Name : Perfect Laser
    Model Number : PEL-800
    Certification : CE / ISO / FDA SGS / TUV
    Price : Negotiable
    Payment Terms : T/T, L/C, PayPal, Western Union
    Supply Ability : 3000 Unit per Month
    Delivery Time : 5-10 Working Days
    • Product Details
    • Company Profile

    Channel Letter Bender With Notching Flanging Function For Stainless Steel , Galvanized Sheet

    Channel Letter Bender With Notching and Flanging Function for Stainless Steel, Galvanized Sheet, Aluminum Strip PEL-800


    Description


    PEL-800 auto channel letter bender is equipped with notching and flanging function. It is of high accuracy bending with the more bending bar system and quick-change bending mold system.
    It has not only all functions of traditional model, but also it can make notching and flanging automatically for flat aluminum coil.
    It is the high-end bending equipment for the first selection, especially suitable for the high letters (usually found in square and plaza), stainless steel letters, punching letters, resin letters and giant glowing letters, ect.



    Product Features


    1. Servo Motor Control Notching and Flanging Mechanism
    It uses servo motor to control notching mechanism with characters of smaller size, higher speed, more stable property, no oil contamination and lower noise.

    2. V-shaped Slotting Mode
    It controls slot depth intelligently and sets total slot depth, single slot depth and slot numbers; servo motor control and high precision nut driver have advantages of high slot speed, high accuracy and constant torque; V slotting surface is smooth and don’t have any burr. Depth is consistent. The R angle id not obvious when bending, which ensures the outline of letters clear and beautiful.

    3. Closed Loop Control System
    All Perfect Laser bending machines have material tracking system. It can real-timely monitor any material stretching and slipping during bending, which ensures closed-loop control of material length and precise match of bent letter and panel face letter.

    4.Telescoping Double Bending Bars Mechanism
    The core of the bending machine is arc shape effect. Perfect Laser automatic channel letter bending machine uses servo control, high rigid gear transmission, telescoping double bending bars, bending mold quick change system, which has advantages of large bending torque, small interference area and no scratch surface. Besides, it fits in with all kinds of material thickness. It is suitable for high-precision and high-strength industrial signs processing.



    Specifications


    Power supplyAC200V
    Power4.0KW
    Compressed air0.4-0.6MPa
    Control axis quantity5axis
    Min. Bending radiusR7mm
    Min. Distance between interior angle and exterior angle4.5mm
    Bending distance from start3mm
    Applied materialStainless steel, galvanized sheet, aluminum coil
    Material thickness0.6-1.0mm
    Processing heightStainless steel, galvanized sheet(20-175mm);aluminum coil(50-175mm)
    Material feeding methodAlternating double screw rails feeding
    Notching typeControlled by servo motor
    Notching angle30°/120°
    Flanging typePneumatic flanging for right angle
    Flanging width14mm
    Servo motor4PCs
    Step motor1PCs
    N.W./G.W.800Kgs/900Kgs
    Dimension2290(L)*860(W)*1560(H)mm

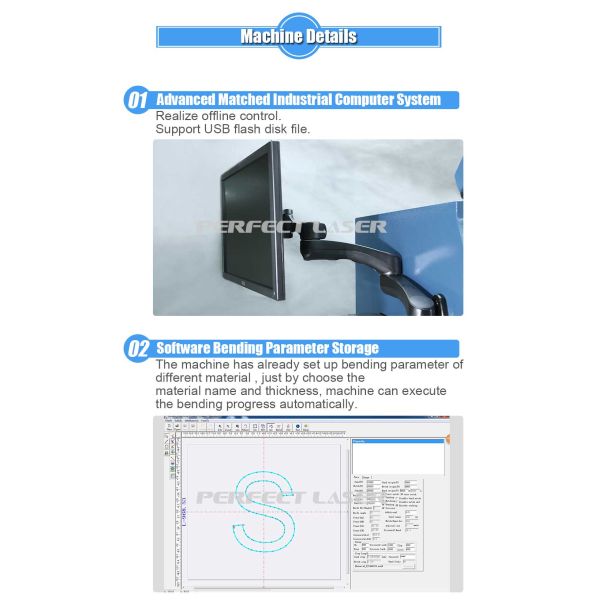

    Software supportDXF/PLT files input, support CAD, TYPE3, CRELDRAW, ILLUSTRATOR, ect.

    Sample Show



    Packaging & Delivery


    1. Prompt deliver at the very day.
    2. Sophisticated and professional logistic agent.
    3. Well-trained and disciplined packing team.
    4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


    Competitive Advantages


    1. We offer high quality products at competitive price in quick delivery.
    2. 100% custom pass guaranteed.
    3. Good after-sale service.
    4. Flexible and Untraceable payment terms.
    5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
