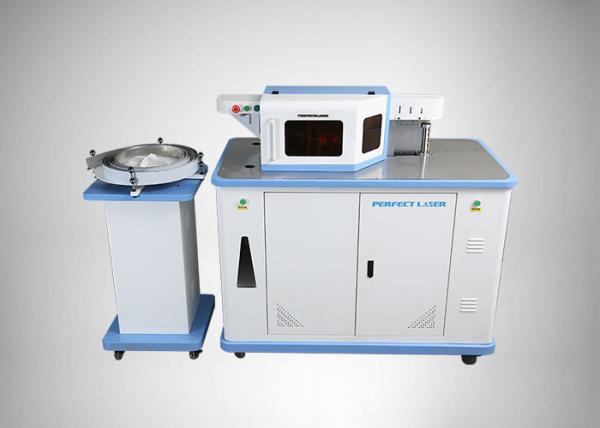

Three In One High Precision Automatic Channel Letter Bender Machine
For Stainless Steel Aluminium Profile
(Model:PEL-700)
★Product Description
Perfect Laser is the world leading manufacturer for channel letter
marking machine.
Our channel letter bender machine is a new advertising letter
making machine, which can be used for logos, signs, neon signs,
billboards, light boxes production, outdoor advertising and other
advertising making channel letters production.
This is one kind of three-in-one CNC channel letter bender machine
with double pole double arc device. It has the advantage of high
efficiency, stability and precision. This machine can process
aluminum sideband, aluminum, stainless steel sideband, metal
sideband etc. This three-in-one CNC bending machine has two sets of
slotting system for slotting different materials without change the
blade. Compare to other manufacturer's processing materials width
of within 2-120mm, PERFECT LASER channel letter making machine
processing material width is 2-150mm, and processing thickness is
up to 1.20mm.
★Machine Details:
★Application and Samples:
1) Applicable Materials: Aluminum strip bending, stainless steel
strip bending, iron bending, galvanized steel bending ect.
2) Applicable Industries: advertising industry, such as logos,
signs, neon signs, billboards, light boxes production, outdoor
advertising and other advertising production.
★Specifications
| Model | PEL-700 Channel Letter Bending Machines |
| Control Type | PC control type |
| Working Principle | Automatic Feeding, Automatic Slotting, Automatic Arc Bending,
Automatic Depth Adjustment |
| Bending Type | Single + Double side bending |
| Bending Materials | Stainless Steel, Flat Aluminum, Aluminum Profile, Galvanized Iron,
Iron sheet |
| Max. Processed Thickness | Aluminum Plate :0.3mm-1.5mm |
| Stainless Steel:0.3mm-1.0mm |
| Iron:0.4-1.2mm |
| Max. Processed Width | ≤150mm |
| Voltage | 220V50HZ1P |
| Size | 1900mm × 700mm × 1450mm |
| Weight | 420 kgs |
| File Format | DXF,AI,PLT |
| Bending Radius | ≥6mm |
| Feed speed | 5-20 Meter / Min |
| Precision | 0.05mm |
| Air pressure | 0.6Mpa |
| Power | ≤3000W |
| Software: | Leetro System CBS4 |
★Product Features
1) Friendly man-machine interface, simple configuration,
touch-screen operation. Simply enter the processing of text,
graphic design files, and then the machine can process them on
materials automatically.
2) A unique three-dimensional process simulation technology,
two-dimensional design file to be able to display three-dimensional
effects, supplemented by translation, rotation, zoom and other
functions, enables full observation and monitoring of whole working
process.
3) The original double-bent knife parallel bending technology to
save time and greatly improve the processing efficiency, the
maximum bending angle reached 130 °.
4) High precision machining, feeding precision can reach 0.01mm,
bending accuracy up to 0.4 °.
5) With precision automatic calibration function, based on the way
of the processing material, self-adjusting process parameters, so
that it can match with a variety of engraving machines and cutting
machine, meet a variety of complex embedded process accuracy as
much as possible.
6) Wide range of applications: CNC Bending machine can process
0-1.5mm strip of aluminum, galvanized steel, iron and other metal
sheet.
7) It can work in 0.05 precision, and work together with laser
engraving machine, plasma cutting machine to realize the
advertisement processing.
★Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. Aftersale service:Any questions or problems after receiving the
product, please feel free to contact us. Problems would be solved for you immediately.
★Competitive Advantages
1. We offer high quality products at competitive price in quick
delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland,
Finland, Spain, UK, France, Russia,USA, Brazil, Mexico, Australia,
Japan, Korea, Thailand, Indonesia, Uruguay and many other
countries.
