    Multipower CO2 Laser Engraving Machine Fabric Laser Engraving Machine DC 0.8A 24V

    Ask Lasest Price
    Brand Name : Perfect Laser
    Model Number : PEDK- 13090
    Certification : CE / ISO / SGS / TUV
    Price : Negotiable
    Payment Terms : T/T, L/C, PayPal, Western Union
    Supply Ability : 300 Unit per Month
    Delivery Time : 7-15 Working Days
    • Product Details
    • Company Profile

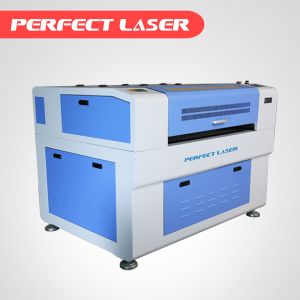

    Multipower CO2 Laser Engraving Machine Fabric Laser Engraving Machine DC 0.8A 24V

    Multipower Laser Engraving Machine Fabric Laser Engraving Machine DC0.8A 24V

    (Model:PEDK-13090)


    ►Product Description


    Perfect Laser independently developed a CO2 laser engraving machine, this machine uses advanced foreign technology, combined with our many years of equipment production experience, with the dual functions of engraving and cutting, to meet the needs of a wide range of production customers.
    This machine with simple operation, high precision and speed of engraving, no burr cutting edge, no secondary grinding, saving manpower and material resources, sculpture depth can be adjusted.


    ►Product Features


    1. High-speed inner slide, the cutting speed is very fast, greatly improving work efficiency.

    2. Convenient operation interface: Advanced LCD screen, this laser engraving machine supports PC and USB2.0 ports, DSP offline control system, the user interface is good, easy and simple.

    3. Cover protection: sealed chassis design to ensure the safety of processing environment, a unique cover protection design to ensure that operators open the machine cover, the laser power supply to suspend work, to protect the safety of the operator.

    4. Visualization working path: The laser is invisible light, in order to let the operator more specifically process the concrete place, the laser engraving machine adopts the red light indication method to realize the precise positioning of the laser beam.

    5. Optional electric lifting platform, up and down to adjust the working height, to meet the processing requirements of different thickness of the object. At the same time optional knife table, to adapt to different processing materials.

    6. Drawer ladder design: it is easy to collect and obtain the cutting object.


    Technical Data


    ModelPEDK-13090
    Working Area1300x900mm (4 feet*3 feet)
    Laser Power60w / 80w / 100w / 130w / 150w
    Laser TypeHermetic and Detached Co2 Laser Tube
    Engraving Speed0-60000mm/s
    Cutting Speed0-10000mm/s
    Cutting Thickness0-25mm acrylic (Others Determined by Materials)
    Repeat Location Accuracy+/-0.0125mm
    Driving ModeDC0.8A 24V Stepper Motor
    Position SystemRed dot Laser Pointer
    InterfaceUSB port transfer
    VoltageAC220v/50hz or 110v/60hz
    Machine Power900w
    Controlling SystemCNC Professional Control System
    Support Graphics ModeBMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.
    Cooling ModeCW-3000 Water Cooling (with Protection Function)
    Auxiliary DevicesExhaust Fan and Exhaust Pipe
    Cutting PlatformProfessional Thickening Strip or Honeycomb Work Table
    Power Control ModeLaser Energy Combining Movement Control System
    SoftwareProfessional Reader Laser Cutting Software
    Operating Temperature0-45C
    Operating Humidity5-95%
    OperationVCD Training, Engineer Overseas Available
    Machine Size1970mm*1480mm*1250mm

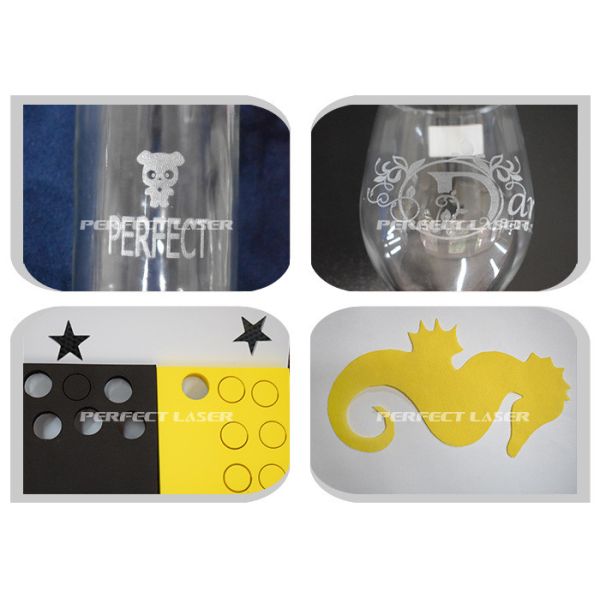

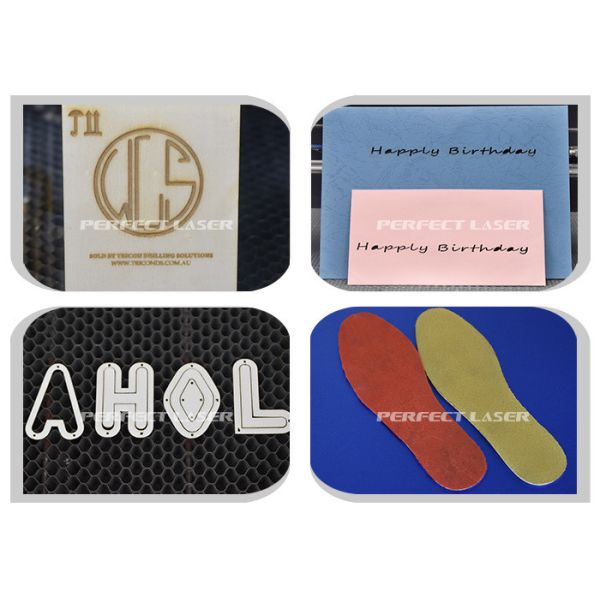

    Sample Show


    Multipower CO2 Laser Engraving Machine Fabric Laser Engraving Machine DC 0.8A 24V

    Multipower CO2 Laser Engraving Machine Fabric Laser Engraving Machine DC 0.8A 24V

    Packaging & Delivery


    1. Sophisticated and professional logistic agent.
    2. Well-trained and disciplined packing team.
    3. Prompt deliver at the very day.
    4. After-sale service:.Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


    Competitive Advantages


    1. 100% custom pass guaranteed.
    2. Good after-sale service.
    3. We offer high quality products at competitive price in quick delivery.
    4. Flexible and Untraceable payment terms.
    5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
