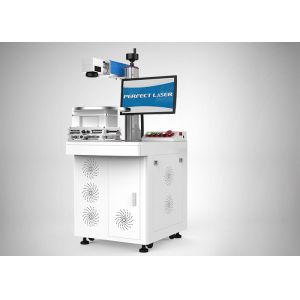

    Energy Saving Laser Marking Machine Automatically Arrangeserial Numbers

    Ask Lasest Price
    Brand Name : Perfect Laser
    Model Number : PEDB-420
    Certification : CE / ISO / FDA
    Price : Negotiable
    Payment Terms : T/T, L/C, PayPal, Western Union, MoneyGram, Escrow
    Supply Ability : 9000 Unit per Month
    Delivery Time : 2-3 Working Days
    • Product Details
    • Company Profile

    Energy Saving Laser Marking Machine Automatically Arrangeserial Numbers



    Energy Saving Laser Marking Machine Automatically Arrangeserial Numbers

    Description

    Fiber Laser Marking Machine System for Animal Ear Tags Plastic Parts is a professional machine for marking animals based on the needs of ear tags at the current animal time. Because of the integration of marking and material, the marking is not easy to forge, and the marking process is also very fast, which can effectively save time and cost.
    The machine adopts a German high-quality laser. This beam is not only of superior quality, but also the marking lines are smooth and fine. It can be used together with the special coding software and professional custom working platform independently developed by Perfect Laser, and it can realize automatic serial number marking. Text and two-dimensional code input and fast and accurate implementation of a variety of animal ear tag surface marking and identification.


    Product Features

    1. Satisfy the requirement of technical requirements for coding equipment in the "Technical Code for Production of Ear Tags for Livestock Ear Tags" issued by the Ministry of Agriculture. It can print information such as logos and two-dimensional codes on the surface of various ear tags of livestock.
    2. The machine adopts an integrated design and is equipped with an automatic 4-8 station rotating platform (the shape of the platform can be customized according to your ear tag part). The operation is simple, safe and environmentally friendly.
    3. Marking speed is quick and marking once forming, no consumables, low overall energy consumption, long service life, low cost.
    4. The use of lasers imported from Germany, high precision marking, high-quality beam mode and optical frequency control, and clear graphics and fine marks, to achieve the permanent and anti-counterfeit identification of animal ear tags.
    5. Using Jiaxin laser's independent research and development of special coding software, with a professional custom work platform, the workpiece processing time is shorter and more efficient.

    Application

    This animal ear tag laser marking machine is mainly applied in the identification of numbers or two-dimensional codes on animal ear tags (pigs, cattle, sheep) for the information management of animals and livestocks for animal breeding, epidemic prevention and meat quarantine.


    Specifications


    Model NoPEDB-420 Animal Ear Tag Laser Marking Machine
    TypeStandby
    ComputerIncludes PC
    Laser Source
    IPG SeriesPulsed, High Energy Ytterbium Fiber Lasers
    Mode of operationPulsed
    Polarizationrandom
    Power20W 30W 50W
    Central emission wavelength1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
    Emission Bandwidth (FWHM)<10 nm
    Long-term average power instability<5%
    Pulse width, (FWHM)100 ns
    Laser switching ON time180 μsec
    Laser switching OFF time180 μsec
    Pulse Repetition Rate* kHz20-80 kHz
    Energy per pulse (PRR = 20 kHz)0.95 mJ
    Typical beam quality, M2<1.8
    Output fiber delivery length3m
    Operating voltage220V
    Max. Power consumption600W
    Net Dimensions143*62*101cm
    Net Weight130 kgs
    Gross Weight200 kgs
    Laser system
    Scanning Speed0-7000mm/s
    Marking Speed0-5000mm/s
    Marking size110mm×110mm (F-theta 160)
    Spot size≤ 40 micron (F-theta 160)
    Cooling unitAir cooled
    Pilot laser650nm diode laser, visible red light for marking guide
    Continuous working time≥16h
    Humidity45~85% (no condensation)
    Operating temperature0~40℃
    Control unitsLaser Mark (English Version)

    Sample Show


    Packaging & Delivery
    1. Prompt deliver at the very day.
    2. Sophisticated and professional logistic agent.
    3. Well-trained and disciplined packing team.
    4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


    Competitive Advantages
    1. We offer high quality products at competitive price in quick delivery.
    2. 100% custom pass guaranteed.
    3. Good after-sale service.
    4. Flexible and Untraceable payment terms.
    5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
