20W Mini Handheld Metal Stainless Steel Carbon Steel Mild Steel
Iron Aluminum Fiber Laser Engraving Machine
(PEDB-160)
Product Description
The Perfect Laser marking machine is a new generation of portable
handheld marking machine which is able to help troubleshoot and
solve problems in a much more timely and efficient manner.
Thanks to its programmable devices and high-speed, high-precision
digital-analog integrated circuits, laser processing positioning is
both accurate and fast.
The portable laser marking machine is further utilized with an
all-optical coupling isolation technology, thereby providing the
whole system with low power consumption, great stability and an
overall strong performance.
Specifically designed for the marking of a wide variety of metal
materials, as well as a few hard plastics, the small laser marking
machine is an ideal choice due to its rapid speed, tremendous
precision and long-term durability.
Applications

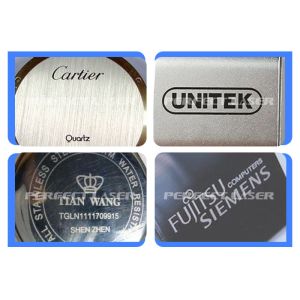

The hand-held laser marking machine is ideal for an array of
production materials, including stainless steel, carbon steel, low
carbon steel, iron, aluminum, zinc, copper, brass, curved objects,
and hard plastics.
The machine is easy to use and delivers superior performance,
allowing you to make precise markings in a matter of seconds.
It’s also durable and reliable - making it suitable for any kind of
industry, whether it’s for small-scale production or larger-scale
operations.
Technical Data
| Product Name | Handheld Portable Fiber Laser Marking Machine |
| Model No. | PEDB-160 | PEDB-161 | PEDB-162 | PEDB-163 |
| Machine Material | Engineering Plastic |
| Laser type | Fiber Laser |
| Laser Power | ≥20W | ≥30W | ≥20W | ≥30W |
| Laser Wavelength | 1064nm |
| Marking Method | High-precision 2D Scanning Method |
| Marking Speed | ≤7000mm/s |
| Main Control Board | Highly integrated main board with embedded 7-inches screen |
| Operating System | Linux |
| Cooling Method | Air Cooling |
| Marking Line Type | Dot matrix + Vector all-in-one machine (both dot matrix and vector) |
| Mirror Size | 8.5mm |
| Marking Area | 50mmx50mm (Standard Marking Area) 100mmx100mm (Optional Marking Area) |
| Position Method | Red light positioning |
| Marking Speed | 650 characters/second (the specific speed is related to the material & marking content) |
| Font Support | English / Korean / Russian / Arabic / Chinese numerals and other standard fonts (only choose one of above) |
| File Format | BMP / DXF / HPGL / JPEG / PLT |
| Barcode/QR code | CODE39 / CODF128 / CODE126FAN13 / PDF417 / 01CODFOR / AZTFCCODF/ DM
/ GS1DM / DOTCODE / HANXINCODE |
| Power Supply | 220V Plug In Mode | Battery Charging Mode |
| Maximum Power Consumption | ≤300W |
| Battery Fully Charged Time | No | 4 hours |
| Battery Continuous Working Time with Full Power | No | 6-8 hours |
| Net Weight | 6 kgs |
| Temperature | 0-40℃ |
| Ambient Relative Humidity | 30%-85% RH |
| Training & After Sales Service | VCD training + 24 hours after-sales service |
| Warranty | 36 month for fiber laser source 24 month for whole machine |
Support and Services:
At Laser Marking Machine, we offer a wide range of services and
technical support to ensure that you have the best experience
possible when using our products.
Our knowledgeable and experienced staff are here to help with any
questions or concerns you may have about the machine and its
operation. We provide free technical support via telephone, email,
and online chat. Our support team is available 24/7 to answer any
questions you may have.
We also offer regular maintenance services and repairs to ensure
that your machine is running smoothly and efficiently. Our team of
trained technicians can diagnose and repair any problems you may
encounter.
For more information, visit our website or contact us directly. We
look forward to helping you with all your Laser Marking Machine
needs!
Packing and Shipping:
The Laser Marking Machine is securely packaged in a custom-made
reinforced carton, with each component individually wrapped for
protection during transit. The carton is then placed in an extra
large cardboard box for further protection while in transit.
The machine is shipped using standard shipping methods. Domestic
orders are shipped via FedEx, UPS, or DHL, and international orders
are shipped via air freight. If requested, special shipping
arrangements can be made.
FAQ:
Frequently Asked Questions About Perfect Laser PEDB-160 Laser
Marking Machine
Q1: What is the Brand Name of Perfect Laser PEDB-160 Laser Marking
Machine?
A1: The Brand Name of Perfect Laser PEDB-160 Laser Marking Machine
is Perfect Laser.
Q2: What is the Model Number of Perfect Laser PEDB-160 Laser
Marking Machine?
A2: The Model Number of Perfect Laser PEDB-160 Laser Marking
Machine is PEDB-160.
Q3: Where is Perfect Laser PEDB-160 Laser Marking Machine made?
A3: Perfect Laser PEDB-160 Laser Marking Machine is made in China.
Q4: What type of certifications does Perfect Laser PEDB-160 Laser
Marking Machine have?
A4: Perfect Laser PEDB-160 Laser Marking Machine is CE /ISO /TUV
/SGS certified.
Q5: What is the minimum order quantity for Perfect Laser PEDB-160
Laser Marking Machine?
A5: The minimum order quantity for Perfect Laser PEDB-160 Laser
Marking Machine is 1 Unit.
