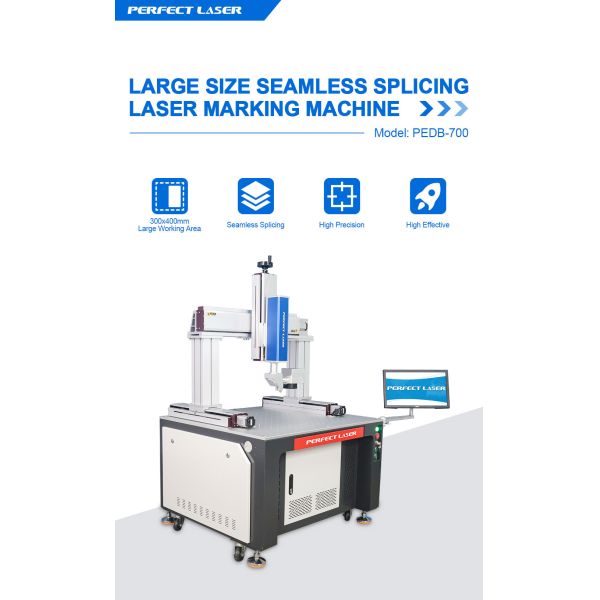

20w 30W 60W 100W Desktop Large-Size Metal Gold Silver Stainless
Steel Iron Fiber Laser Marker Engraving Marking Machine
(Model: PEDB-700)
※Product introduction
PEDB-700 metal laser marking machine is specially designed for
large format continuous laser marking.
Adopt gantry structure, marking area is large, up to 300x400mm.
Perfect laser adopts advanced German technology to develop a new
type of large seamless metal laser marking machine. The emergence
of this large-size metal laser marking machine solves the
limitation of the small marking area of the traditional model,
broadens the application field of laser marking, and wins a broader
international market.
Perfect laser fiber laser marking machine has advantages in marking
speed and accuracy. We use reliable, high-quality core components
to ensure a machine life of up to 100,000 hours.
※Product Features
1. Large marking area: the working area of the ordinary metal laser
marking machine is only 110x110mm, while the PEDB-700 can reach
300x400mm. Suitable for large size workpiece marking, such as:
nameplate, product identification, etc.
2. Good marking effect: The use of German technology and laser
source, laser beam thin, to ensure the best marking effect. With
stable slider work, metal laser marking machine is especially
suitable for large size seamless stitching image marking.
3. Depth marking: The marking depth of the metal laser marking
machine can reach 0.5mm(depending on the material), to meet the
deepest marking needs.
4. Higher accuracy: metal laser marking machine accuracy up to
0.001mm.
5. 10 years of life: the service life can reach 100,000 hours, and
the whole machine can be used for at least 8-10 years.
6. No consumables, completely maintenance-free
7. You do not need to adjust the laser path. The optical system has
been set before delivery.
8. Adopt integrated air cooling: energy saving.
9. Low power consumption: low cost, only 2 kW/h.
10. Easy installation: Perfect laser will provide you with a metal
laser marking machine installation training video, very easy to
learn and operate.
※Application
Metal laser marking machine is mainly used in the fields of high
marking accuracy, such as: mobile phone keys, plastic translucent
keys, electronic components, integrated circuits (IC), electrical
appliances, communication products, sanitary ware, tools,
accessories, knives, glasses and watches, jewelry, auto parts,
luggage buckle, cookware, stainless steel products.
※technical parameters
| Model | PEDB-700 Large Size Laser Marking Machine |
| Type | 20W | 30W | 50W |
| Marking Speed | ≤7000mm/s |
| Marking Size (can be customized) | 300x400mm |
| Minimum character height | 0.2mm |
| Marking repeatability | ＜24 μrad |
| Marking depth | 0.5mm(depending on the machine) |
| Minimum line width | 0.06mm(depending on the machine) |
| Power | AC 220V / 50-60KHz |
| X-axis displacement (can be customized) | 120x300mm |
| Y-axis displacement (can be customized) | 120x400mm |
| Z-axis displacement (can be customized) | 120x500mm |
| Motor | Stepper motor (standard) / servo motor (optional) |
| Displacement positioning accuracy | 0.05mm / 0.02mm |
| Displacement repeat positioning accuracy | 0.02mm / 0.01mm |
| Displacement speed | 100mm/s--300mm/s |
| |
※Sample Show
※Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
4. Sophisticated and professional logistic agent.
※Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland,
Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia,
Japan, Korea, Thailand, Indonesia, Uruguay and many other
countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick
delivery.
